Parameter

Input: DC24V/ AC100-265V

Power:18W

LED Brand: CREE/Osram

CCT:2200K/2700K/3000K/4000K/6000K/RGB/RGBW

Beam Angle: 10°15°25°30°45°60°

Size: D180mm*62mm

IP degree: IP66

Material: Die cast aluminum+ glass

Control: DMX512

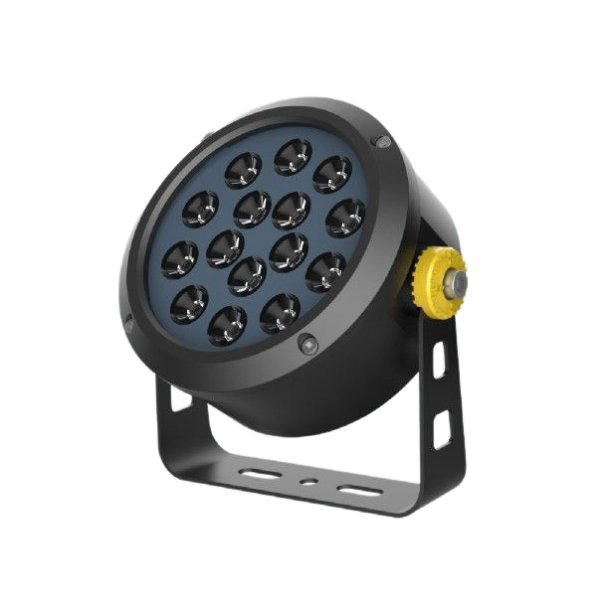

RGBW LED Flood Light for Architectural & Landscape Lighting

An RGBW LED Flood Light is a professional outdoor lighting fixture that combines RGB color-changing capability with a dedicated white LED channel. Compared with standard RGB flood lights, RGBW technology provides greater flexibility for architectural and landscape lighting projects that require both dynamic colors and high-quality white illumination.

Always Lighting manufactures RGBW LED Flood Lights for building facades, hotels, bridges, landscapes, commercial buildings, parks, landmarks and other outdoor architectural lighting projects.

Our LED flood light range supports RGBW 4-in-1 LED technology, multiple beam angles, IP-rated outdoor protection and DMX512 control options. Selected models are available with AC100-277V and DC24V input configurations.

What Is an RGBW LED Flood Light?

An RGBW LED Flood Light combines four LED color channels:

• Red

• Green

• Blue

• White

RGB channels are used to create dynamic colors, while the dedicated white channel provides cleaner and more useful white illumination.

This makes RGBW particularly suitable for projects that need to operate in different lighting modes.

For example:

Daily architectural lighting → White light

Festival lighting → RGB color effects

Special events → Dynamic RGBW scenes

Nighttime landscape lighting → Warm or neutral white

Unlike an RGB-only flood light, RGBW does not need to rely entirely on mixing red, green and blue LEDs to create white-looking light.

RGB vs RGBW LED Flood Light

The main difference between RGB and RGBW is the dedicated white LED channel.

RGB is a good choice when the primary requirement is colorful decorative lighting.

RGBW is usually a better choice when a project requires both dynamic colors and high-quality white illumination.

RGBW LED Flood Light for Building Facade Lighting

RGBW LED Flood Lights are increasingly useful for architectural facade projects where lighting needs to change according to different occasions.

They can be used to illuminate:

• Building facades

• Columns

• Architectural details

• Hotel exteriors

• Commercial buildings

• Landmark structures

• Government buildings

• Public architecture

During normal operation, the white channel can provide a clean architectural appearance.

During festivals or special events, the RGB channels can create dynamic colors.

This allows one lighting fixture to perform multiple lighting functions.

RGBW LED Flood Light for Landscape Lighting

RGBW flood lights are also suitable for professional landscape lighting.

Typical applications include:

• Gardens

• Parks

• Villas

• Resorts

• Theme parks

• Outdoor sculptures

• Landscape structures

• Public plazas

• Landmark landscapes

For example, a landscape project can use warm white lighting for normal evening operation and RGBW color-changing scenes during festivals or special events.

Always Lighting's outdoor flood light range is designed for architectural and landscape applications, including parks, hotels, bridges, public spaces and other outdoor projects.

RGBW LED Flood Light with DMX512 Control

For professional projects, DMX512 RGBW LED Flood Lights provide advanced lighting control.

DMX512 can be used to control:

• RGBW color

• White light

• Brightness

• Color transitions

• Dynamic effects

• Multiple fixtures

• Lighting scenes

• Synchronized lighting

This is particularly useful when a project contains dozens or hundreds of RGBW flood lights.

A typical system can be configured as:

DMX512 Controller

↓

DMX Signal Cable

↓

RGBW LED Flood Lights

↓

Multiple Lighting Zones

The actual DMX channel configuration depends on the specific fixture and its DMX mode.

Always Lighting's DMX-controlled flood light solutions support professional applications requiring precise lighting control, multiple fixture management, programmable scenes and synchronized color effects.

Why Choose RGBW Instead of RGB?

RGBW is particularly useful when the lighting design requires both decorative color and practical white illumination.

1. Better White Lighting

The dedicated white LED channel provides a more direct white-light output than relying only on RGB color mixing.

2. More Lighting Scenes

RGBW allows designers to create both white-light and color-changing scenes with the same fixture.

3. Better for Architectural Projects

Hotels, commercial buildings and landmarks may need different lighting modes throughout the year.

4. Flexible Event Lighting

RGBW can provide special colors for:

• Festivals

• Holidays

• Brand events

• Public celebrations

• Cultural events

• Special occasions

5. Simplified Fixture Selection

Instead of installing separate white flood lights and RGB flood lights, an RGBW fixture can provide both functions in one product.

RGBW LED Flood Light Features

Always Lighting RGBW LED Flood Light solutions can provide:

RGBW 4-in-1 LED Technology

Four LED channels are integrated into one lighting source, allowing RGB color effects and dedicated white illumination.

Multiple Beam Angles

Available optical configurations across the product range include narrow and wide beam options.

Depending on the model, beam angles can include:

• 7°

• 10°

• 15°

• 25°

• 30°

• 40°

• 45°

• 60°

• 90°

The appropriate beam angle should be selected according to the lighting distance, target area and architectural structure.

Outdoor IP Protection

Selected Always Lighting RGB/RGBW flood lights use IP66 outdoor protection, while the wider product range includes IP65/IP66/IP67 options depending on the model.

Die-Cast Aluminum Housing

Die-cast aluminum construction provides mechanical protection and helps transfer heat away from the LED source.

Efficient Thermal Management

Good heat dissipation helps maintain stable LED performance during long-term outdoor operation.

Multiple Power Options

Always Lighting's flood light range includes different power configurations. Selected models include 3W/6W, 9W/12W, 18W/24W and 36W/48W configurations.

Flexible Voltage Options

Selected models support:

• AC100-277V

• DC24V

The correct voltage should be selected according to the project electrical system and fixture specification.

DMX512 Control

DMX512 allows professional control of multiple RGBW flood lights for synchronized architectural lighting effects.

RGBW LED Flood Light Applications

Hotel Facade Lighting

RGBW flood lights can illuminate hotel facades, entrances, courtyards, plazas and landscape areas.

Hotels can use white light for everyday operation and RGBW scenes for holidays and events.

Always Lighting's hotel lighting solutions include RGBW and DMX512 options for dynamic architectural effects.

Bridge Lighting

RGBW flood lights can highlight bridge structures, columns, arches and architectural details.

With DMX512 control, bridges can display dynamic color-changing and gradient lighting effects.

Commercial Building Lighting

Shopping malls, office buildings and commercial centers can use RGBW flood lights for facade illumination and promotional lighting.

Landscape Lighting

RGBW flood lights can illuminate:

• Trees

• Gardens

• Sculptures

• Walls

• Parks

• Landscape structures

Theme Park Lighting

RGBW and DMX512 provide flexible color-changing effects for theme parks and entertainment environments.

Landmark Lighting

RGBW flood lights are suitable for landmark buildings and public architecture where dynamic nighttime lighting is required.

Event & Festival Lighting

RGBW fixtures can create programmable lighting scenes for festivals, celebrations and special events.

How to Choose an RGBW LED Flood Light?

Before purchasing an RGBW LED Flood Light, consider the following specifications.

1. Determine the Lighting Purpose

First determine whether the fixture will be used for:

• Facade lighting

• Landscape lighting

• Bridge lighting

• Hotel lighting

• Landmark lighting

• Event lighting

This affects the required power, beam angle and control system.

2. Choose the Beam Angle

For long-distance architectural accent lighting, narrow beams may be appropriate.

For general facade lighting, medium beam angles can provide better coverage.

For large landscape areas, wider beams may be more suitable.

3. Select the IP Rating

For outdoor applications, choose an appropriate IP rating based on the actual environment.

IP66 is suitable for many outdoor architectural and landscape applications.

IP67 may be considered when temporary water immersion is possible under specified conditions.

For permanent underwater applications, use a dedicated IP68 underwater lighting product rather than assuming an IP67 flood light is suitable.

4. Select the Control System

For small installations, basic control may be sufficient.

For large architectural projects, consider:

• DMX512

• RGBW controller

• Dimming

• Programmable lighting scenes

• Centralized lighting control

5. Consider the Installation Voltage

For larger outdoor projects, the electrical distribution system should be considered before selecting AC or DC input fixtures.

Selected Always Lighting flood lights support AC100-277V and DC24V configurations.

RGBW LED Flood Light Manufacturer

Always Lighting is a China-based LED lighting manufacturer specializing in architectural, landscape and commercial lighting.

Our product portfolio includes:

• RGBW LED Flood Lights

• RGB LED Flood Lights

• DMX512 LED Flood Lights

• Architectural LED Flood Lights

• Landscape LED Flood Lights

• LED Wall Washers

• LED Underwater Lights

• LED Inground Lights

Always Lighting focuses on project-based lighting solutions rather than only individual products.

OEM & ODM RGBW LED Flood Light

For distributors, wholesalers, lighting brands and engineering contractors, Always Lighting provides OEM and ODM services.

Customization can include:

• Power

• Beam angle

• LED configuration

• RGB/RGBW

• Color temperature

• Control protocol

• Input voltage

• Housing finish

• Logo

• Packaging

• Cable length

• Project-specific requirements

This allows customers to develop RGBW flood lighting products according to their own market and project requirements.

Why Choose Always Lighting RGBW LED Flood Lights?

Always Lighting provides RGBW LED Flood Light solutions for international architectural and landscape projects.

Key advantages include:

• Professional LED lighting manufacturer

• RGBW 4-in-1 LED options

• Multiple power configurations

• Multiple beam angles

• IP-rated outdoor construction

• DMX512 control

• AC100-277V/DC24V options on selected models

• OEM & ODM customization

• Project-based technical support

• Architectural and landscape lighting experience

Our RGBW flood lights can be supplied for projects in Europe, the Middle East, Southeast Asia and other international markets.

RGBW LED Flood Light Supplier for Global Projects

If you are looking for an RGBW LED Flood Light Manufacturer or Supplier, Always Lighting can provide product specifications, samples and project-based solutions.

Our RGBW flood lights are suitable for:

• Architectural lighting contractors

• Landscape lighting companies

• Lighting designers

• Architects

• Lighting distributors

• Lighting wholesalers

• Importers

• Engineering companies

• Hotel projects

• Commercial projects

• Landmark projects

For a project quotation, provide the required:

Power + Quantity + Beam Angle + IP Rating + RGBW + DMX512 + Voltage + Installation Environment

Our team can then recommend a suitable RGBW LED Flood Light configuration.

FAQ

What is an RGBW LED Flood Light?

An RGBW LED Flood Light combines red, green, blue and white LED channels in one fixture. It can produce dynamic colors while also providing dedicated white illumination.

What is the difference between RGB and RGBW flood lights?

RGB uses red, green and blue channels, while RGBW adds a dedicated white LED channel. RGBW provides greater flexibility when both color-changing effects and white illumination are required.

Are RGBW LED Flood Lights suitable for outdoor use?

Yes. Outdoor RGBW flood lights with suitable IP protection can be used for building facades, landscapes, hotels, bridges and other outdoor applications.

Can RGBW LED Flood Lights support DMX512?

Yes. Selected Always Lighting RGB/RGBW flood lights support DMX512 control for color changing, brightness adjustment, synchronized effects and programmable lighting scenes.

What beam angle should I choose?

It depends on the lighting distance and target surface. Narrow beams are suitable for long-distance accent lighting, medium beams for facade lighting and wider beams for large landscape areas.

Can RGBW flood lights produce white light?

Yes. RGBW fixtures include a dedicated white LED channel, allowing them to provide white illumination in addition to RGB color effects.

Where are RGBW LED Flood Lights used?

They are commonly used for building facades, hotels, bridges, parks, landscapes, theme parks, landmarks, commercial buildings and event lighting.

Can Always Lighting customize RGBW LED Flood Lights?

Yes. Always Lighting supports OEM and ODM customization including power, beam angle, RGBW configuration, control system, housing, logo and packaging.
