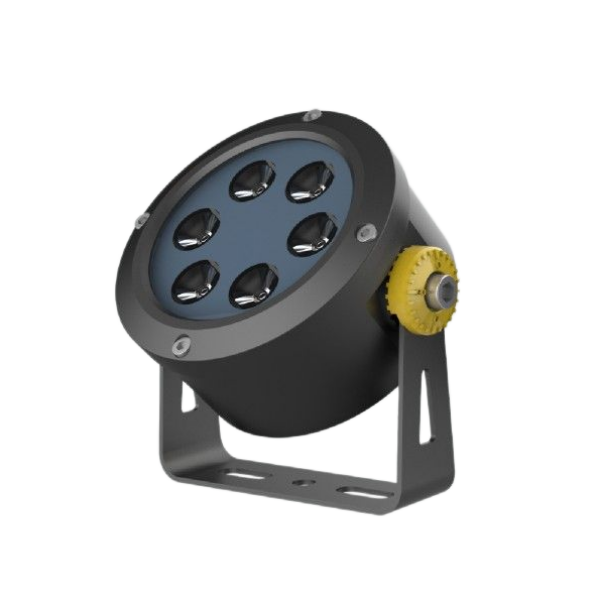

Parameter

Input: DC24V/ AC100-265V

Power:6W

LED Brand: CREE/Osram

CCT:2200K/2700K/3000K/4000K/6000K/RGB/RGBW

Beam Angle: 10°15°25°30°45°60°

Size: D108mm*55mm

IP degree: IP66

Material: Die cast aluminum+ glass

Control: DMX512

Bridge LED Flood Light for Architectural Bridge Lighting

A Bridge LED Flood Light is an outdoor architectural lighting fixture designed to illuminate bridge structures, piers, arches, columns, beams and decorative details. With the right power, beam angle and installation position, LED flood lights can create uniform bridge illumination or focused accent lighting.

For dynamic bridge lighting projects, RGB and RGBW LED flood lights with DMX512 control can create synchronized color-changing, gradient and programmed lighting effects.

Always Lighting manufactures Bridge LED Flood Lights for architectural lighting contractors, lighting designers, engineering companies, distributors and bridge lighting projects.

What Is a Bridge LED Flood Light?

A Bridge LED Flood Light is a directional outdoor LED fixture designed specifically for illuminating bridge structures.

Compared with general outdoor floodlights, bridge lighting fixtures need to consider:

• Bridge height

• Lighting distance

• Structural shape

• Beam angle

• Required brightness

• IP protection

• Installation position

• Control system

• Color temperature

The correct combination of these factors can help highlight the architectural form of a bridge while controlling unnecessary glare and light spill.

Bridge LED Flood Light for Architectural Lighting

Modern bridges are increasingly used as important nighttime landmarks.

LED flood lights can highlight:

• Bridge arches

• Piers

• Columns

• Beams

• Railings

• Towers

• Cable structures

• Decorative elements

• Bridge entrances

Different optical configurations can be combined to illuminate both large structural surfaces and small architectural details.

For large bridges, multiple LED flood lights can be installed along the structure and controlled as different lighting zones.

Bridge LED Flood Light Beam Angle

Beam angle is an important factor when selecting flood lights for bridge lighting.

Narrow Beam

Narrow beam flood lights are suitable for:

• Tall bridge columns

• Towers

• Cable structures

• Architectural details

• Long-distance accent lighting

They concentrate light into a smaller area.

Medium Beam

Medium beam flood lights are suitable for:

• Bridge facades

• Arches

• Piers

• Structural surfaces

• General architectural illumination

Wide Beam

Wide beam flood lights can be used for:

• Large structural surfaces

• Wide bridge walls

• Open areas

• Large architectural elements

The correct beam angle depends on the installation distance, target height and surface width.

RGB & RGBW Bridge LED Flood Light

Static white lighting is suitable when the bridge requires a clean and consistent architectural appearance.

For bridges that need dynamic nighttime lighting, RGB and RGBW LED flood lights can provide additional flexibility.

RGB Bridge Flood Light

RGB LED flood lights can create multiple colors and dynamic color-changing effects.

They are suitable for:

• Decorative bridge lighting

• Festival lighting

• Landmark lighting

• Event lighting

• Dynamic architectural lighting

RGBW Bridge Flood Light

RGBW adds a dedicated white LED channel to RGB technology.

This allows the bridge to use:

White architectural lighting + RGB dynamic effects

RGBW is particularly useful when the bridge needs normal white lighting on regular days and colorful lighting for festivals, celebrations or special events.

DMX512 Bridge LED Flood Light

For large bridge lighting projects, DMX512 Bridge LED Flood Lights can be connected to a centralized lighting control system.

DMX512 can control:

• Brightness

• RGB colors

• RGBW channels

• Color transitions

• Lighting scenes

• Dynamic effects

• Multiple lighting zones

• Synchronized fixtures

A typical system can be configured as:

DMX512 Controller → DMX Signal → Bridge LED Flood Lights → Multiple Lighting Zones

This allows lighting designers to program synchronized color-changing and gradient effects across the bridge.

Dynamic Bridge Lighting Effects

DMX512 RGB/RGBW flood lights can create different visual effects, including:

Static Color

The bridge can remain illuminated in one selected color.

Color Changing

Different sections of the bridge can change between programmed colors.

Gradient Lighting

Colors can gradually transition along the bridge structure.

Synchronized Lighting

Multiple flood lights can operate together according to a programmed scene.

Festival Lighting

Special lighting scenes can be created for holidays, celebrations and public events.

The final effect depends on the lighting controller, fixture configuration and DMX programming.

IP Rating for Bridge LED Flood Lights

Bridge lighting fixtures are normally exposed to rain, dust, humidity and changing outdoor weather conditions.

Therefore, the appropriate IP rating should be selected according to the installation environment.

IP65

Suitable for many general outdoor bridge lighting applications.

IP66

Provides stronger protection against powerful water jets and is suitable for demanding outdoor architectural environments.

IP67

Provides additional protection against temporary water immersion under specified test conditions.

For areas close to water or locations that may experience temporary flooding, the required IP protection should be evaluated carefully.

For permanent underwater installation, a dedicated IP68 underwater LED light should be used.

How to Choose a Bridge LED Flood Light?

1. Determine the Bridge Structure

Identify whether the target is:

• Bridge columns

• Arches

• Piers

• Beams

• Towers

• Cable structures

• Decorative elements

Different structures may require different beam angles.

2. Measure the Lighting Distance

The distance between the flood light and the bridge affects the required optical configuration.

Long-distance applications may require narrower beams.

3. Select the Power

The required wattage depends on the target area, installation distance, beam angle and desired lighting level.

4. Choose the Color

Common options include:

• 2700K

• 3000K

• 4000K

• 5000K

• RGB

• RGBW

Warm white can create an elegant architectural appearance, while RGB/RGBW is suitable for dynamic bridge lighting.

5. Select the Control System

For simple static bridge lighting, On/Off control may be sufficient.

For dynamic projects, consider:

• DMX512

• RGB

• RGBW

• Dimming

• Programmable lighting scenes

6. Consider the Installation Environment

Bridge flood lights may be installed near roads, rivers, coastlines or other demanding outdoor environments.

Select the IP rating, housing and electrical configuration according to the actual project conditions.

Bridge LED Flood Light Features

Always Lighting Bridge LED Flood Light solutions can provide:

• High-efficiency LED technology

• Outdoor IP-rated protection

• Durable aluminum housing

• Efficient heat dissipation

• Multiple power options

• Multiple beam angles

• Multiple color temperatures

• RGB and RGBW options

• DMX512 control

• AC100-277V and DC24V options on selected models

• OEM and ODM customization

The exact specifications depend on the selected model and project requirements.

Bridge LED Flood Light Applications

Highway Bridge Lighting

LED flood lights can highlight highway bridge structures and improve their nighttime architectural appearance.

City Bridge Lighting

Urban bridges can become recognizable nighttime landmarks through carefully designed architectural lighting.

Pedestrian Bridge Lighting

Flood lights can highlight bridge structures while creating an attractive nighttime environment.

Landmark Bridge Lighting

RGB/RGBW and DMX512 systems can create dynamic lighting effects for iconic bridges.

River Bridge Lighting

IP-rated outdoor LED flood lights can illuminate bridge structures located above rivers and waterways.

Decorative Bridge Lighting

RGB and RGBW flood lights can be used for festivals, events and special architectural lighting programs.

Bridge Lighting Design Considerations

A successful bridge lighting project should consider both visual appearance and practical installation requirements.

Control Glare

Flood lights should be carefully positioned and aimed to reduce direct glare to drivers, pedestrians and nearby residents.

Control Light Spill

The beam should be directed toward the intended bridge structure rather than surrounding areas.

Maintain Uniformity

Multiple fixtures may be required to avoid excessive bright and dark areas.

Consider Maintenance

Fixtures should be positioned where maintenance and replacement can be performed safely.

Consider the Environment

Bridge projects near rivers, coastlines or roads may require additional consideration of humidity, corrosion, vibration and maintenance access.

Bridge LED Flood Light Manufacturer

Always Lighting is a professional LED lighting manufacturer specializing in architectural, landscape and outdoor lighting solutions.

Our product portfolio includes:

• Bridge LED Flood Lights

• Architectural LED Flood Lights

• Building Facade LED Flood Lights

• Landscape LED Flood Lights

• RGB LED Flood Lights

• RGBW LED Flood Lights

• DMX512 RGBW Flood Lights

• LED Wall Washers

• LED Underwater Lights

• LED Inground Lights

We provide lighting solutions for lighting contractors, architects, lighting designers, engineering companies, distributors and project developers.

OEM & ODM Bridge LED Flood Light

Always Lighting supports OEM and ODM requirements for bridge and architectural lighting projects.

Customization options can include:

• Power

• Beam angle

• Color temperature

• RGB/RGBW

• DMX512 control

• Input voltage

• Housing finish

• Cable length

• Mounting accessories

• Logo

• Packaging

Project-specific requirements can be reviewed before production to select the appropriate Bridge LED Flood Light configuration.

Why Choose Always Lighting?

Always Lighting provides professional LED lighting solutions for international architectural and outdoor lighting projects.

Our Bridge LED Flood Light solutions provide:

• Professional LED lighting manufacturing

• Multiple beam angles

• Multiple power options

• IP-rated outdoor construction

• RGB/RGBW options

• DMX512 control

• Flexible voltage options

• OEM & ODM customization

• Project-based technical support

Our products are suitable for highway bridges, city bridges, pedestrian bridges, landmark bridges, river bridges and other architectural bridge projects.

Bridge LED Flood Light Supplier for Global Projects

If you are looking for a Bridge LED Flood Light Manufacturer or Supplier, Always Lighting can provide professional outdoor flood lighting solutions for bridge and architectural lighting projects.

Our products are suitable for:

• Bridge lighting contractors

• Architects

• Lighting designers

• Engineering companies

• Landscape contractors

• Lighting distributors

• Lighting wholesalers

• Importers

• Municipal projects

• Landmark projects

• Commercial projects

For project inquiries, provide:

Bridge Type + Structure Height + Lighting Distance + Quantity + Power + Beam Angle + CCT + IP Rating + Control System

Our team can recommend a suitable Bridge LED Flood Light configuration.

FAQ

What is a Bridge LED Flood Light?

A Bridge LED Flood Light is an outdoor architectural LED fixture designed to illuminate bridge structures such as piers, columns, arches, beams and decorative elements.

What beam angle is best for bridge lighting?

The ideal beam angle depends on the distance between the fixture and bridge structure, as well as the height and width of the target. Narrow beams are suitable for columns and details, while medium and wide beams can illuminate larger surfaces.

Can RGBW LED Flood Lights be used for bridge lighting?

Yes. RGBW flood lights can provide both white architectural illumination and dynamic color-changing effects.

Can Bridge LED Flood Lights support DMX512?

Selected models support DMX512 control, allowing multiple flood lights to be synchronized and programmed for dynamic lighting effects.

Are Bridge LED Flood Lights waterproof?

Outdoor bridge flood lights are available with different IP ratings. IP65, IP66 and IP67 models can be selected according to the project environment.

Can bridge lighting create gradient effects?

Yes. When RGB/RGBW flood lights are connected to a suitable DMX512 control system, programmed gradient and color-changing effects can be created.

What color temperature is suitable for bridge lighting?

2700K–3000K provides warm architectural lighting, while 4000K provides neutral white illumination. RGB/RGBW can be selected when dynamic color effects are required.

Can Always Lighting customize Bridge LED Flood Lights?

Yes. Always Lighting supports OEM and ODM customization for power, beam angle, CCT, RGB/RGBW, DMX512, voltage, housing and packaging.

Who can purchase Bridge LED Flood Lights from Always Lighting?

Our products are suitable for bridge lighting contractors, engineering companies, architects, lighting designers, distributors, wholesalers, importers and project developers.
