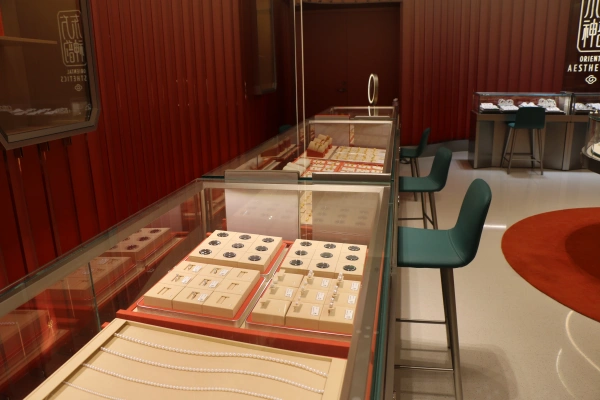

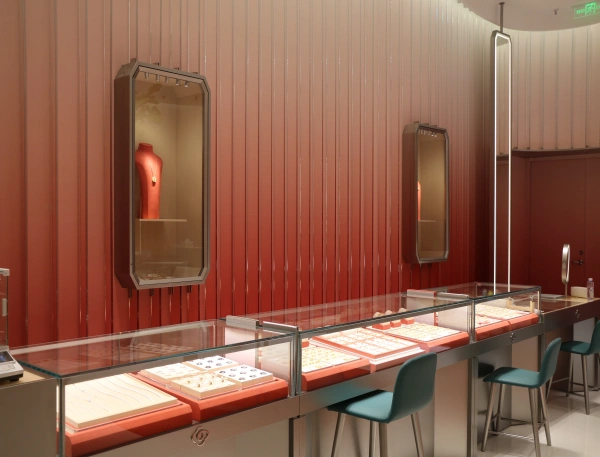

Oriental Charm Diamond Jewelry Showcase Lighting Project – LED Diamond Display Lighting

Project Overview

The Oriental Charm Diamond Jewelry Showcase Lighting Project focuses on creating an attractive and well-controlled lighting environment for diamond jewelry displays.

In luxury jewelry retail, diamonds need more than general illumination. Their visual appearance is influenced by light direction, beam angle, brightness, the cut of each stone, and the customer's viewing position.

A carefully planned LED showcase lighting arrangement can create focused highlights on diamond jewelry while maintaining comfortable viewing conditions and minimizing distracting reflections from glass surfaces.

For this project, the lighting concept focuses on three important aspects:

• Enhancing the visual sparkle of diamonds through directional accent lighting.

• Evaluating 15°, 30° and 40° beam angle options for different showcase positions.

• Reducing unwanted reflections and glare on glass panels and polished display surfaces.

The objective is to achieve a balanced presentation in which diamond jewelry attracts attention without creating excessive brightness or uncomfortable reflections.

1. Lighting Challenges in Diamond Jewelry Showcases

Diamond display cabinets have specific lighting requirements. Unlike ordinary retail shelves, they need to highlight small, highly reflective products while allowing customers to observe their details clearly.

Enhancing Diamond Sparkle and Facet Details

A diamond's sparkle is influenced by its cut, light direction, surrounding environment and viewing angle.

A well-positioned directional spotlight can create concentrated highlights on the diamond's facets. However, excessive brightness or poorly aimed lighting may produce distracting bright spots rather than a balanced display effect.

The lighting design should therefore consider the relationship between the spotlight, diamond position and customer viewing direction.

Choosing Suitable Beam Angles

Different beam angles produce different light distributions.

A narrow beam can create a more concentrated highlight, while a wider beam covers a larger display area. Selecting the right angle is important for balancing product emphasis and overall cabinet illumination.

Controlling Glass Reflections and Glare

Glass showcase panels can reflect LED light sources toward customers. Diamonds, polished metal settings and glass surfaces may also create strong reflections.

If the lighting position is not properly planned, customers may see reflected light sources instead of the jewelry details.

Fixture position, beam direction, brightness and viewing angles should be evaluated together to reduce these distractions.

2. LED Spotlight Beam Angle Selection: 15°, 30° and 40°

The Oriental Charm project lighting concept considers three beam angle options for different diamond showcase requirements.

15° Narrow Beam – Focused Diamond Accent Lighting

A 15° beam angle produces a concentrated light distribution and can be considered for highlighting individual diamond rings, selected necklaces or featured jewelry pieces.

Potential applications include:

• Individual diamond ring displays.

• Featured jewelry pieces inside deep showcases.

• Accent lighting for selected high-value products.

• Creating visual contrast between featured items and the surrounding display.

Because a narrow beam concentrates light into a smaller area, the fixture position and aiming direction need careful adjustment. The designer should check for excessive brightness and uneven illumination.

30° Medium Beam – Balanced Jewelry Display Lighting

A 30° beam angle offers a middle ground between focused accent lighting and broader illumination.

It can be considered for:

• Small groups of diamond jewelry.

• Necklace and bracelet display areas.

• General accent lighting within compact showcases.

• Balancing individual highlights with surrounding illumination.

For display cabinets with several jewelry pieces, a 30° beam may help distribute light more broadly than a narrow spotlight.

40° Wider Beam – Broader Showcase Coverage

A 40° beam angle covers a wider area and can be evaluated for larger jewelry arrangements or display sections where broader illumination is required.

Potential applications include:

• Wider diamond display sections.

• Multiple jewelry pieces arranged on one shelf.

• Reducing overly concentrated lighting patterns.

• Supporting more consistent illumination across a display area.

The final selection depends on the distance between the fixture and the jewelry, cabinet dimensions, product arrangement and desired lighting effect.

Beam Angle Comparison

These beam angles are options for lighting evaluation, not a fixed combination that must be installed in every cabinet. Sample testing is recommended before confirming the final configuration.

3. Creating a Better Diamond Sparkle Effect

The goal of diamond showcase lighting is not simply to increase brightness. It is to create suitable directional highlights while maintaining visual comfort.

Several factors should be considered.

Directional Lighting

LED spotlights can be positioned to direct light toward selected diamond pieces. Different aiming directions may reveal different facet highlights.

For the best visual effect, evaluate the lighting from the normal customer viewing position rather than judging it only from above the cabinet.

Appropriate Brightness and Contrast

A strong contrast between the diamond and its background can help featured products attract attention. However, excessive contrast may make surrounding jewelry difficult to see.

The brightness of the accent lighting should be coordinated with the cabinet's general illumination and the store's ambient lighting.

Color Rendering and Color Appearance

Color rendering is important when diamonds are displayed together with gold, silver, platinum and colored gemstones.

A suitable LED light source should provide consistent color appearance and meet the project's verified CRI requirements.

For reference, Always Lighting's L7328 LED Jewelry Showcase Lighting product page lists a CRI of Ra>90 and a 30° beam angle. The actual model specification should be checked before selecting it for a project.

4. Glare and Reflection Control for Glass Display Cabinets

Glare control is an essential part of diamond showcase lighting design.

Even a technically suitable spotlight can create an uncomfortable display if its position causes direct reflections on the front glass or polished surfaces.

The following measures should be evaluated:

1. Adjust spotlight positioning

Avoid placing spotlights where their light sources are directly reflected toward the main customer viewing positions.

2. Control beam direction

Aim the light toward the jewelry rather than directly toward the glass panels or the customer's eyes.

3. Match beam angle to cabinet depth

A narrow beam may be useful for individual products, but it requires accurate positioning. Wider beams should also be checked to ensure they do not create unwanted reflections.

4. Balance accent and ambient lighting

Coordinate the cabinet lighting with the surrounding store illumination. Excessively bright accent lighting can create distracting contrast.

5. Test from different viewing angles

Evaluate the showcase from the front and both sides. A reflection that is not visible from the installation position may become noticeable when customers approach the cabinet.

5. Recommended LED Lighting Configuration

For diamond jewelry showcases, a combination of compact LED spotlights and suitable cabinet lighting can be considered according to the display structure.

The actual product combination should be confirmed according to cabinet drawings, mounting positions, available installation space and the required lighting effect.

For example, Always Lighting offers the LC7303G-S-L LED Showcase Spotlight with 15° and 40° beam angle options, while the L7328 LED Jewelry Showcase Lighting product page lists a 30° beam angle.

These products provide reference options for evaluating the required beam distribution. Final model selection should be based on the confirmed project specifications.

6. Why Choose Always Lighting for Diamond Showcase Lighting?

Always Lighting provides LED lighting products and solutions for jewelry showcases, retail display cabinets, gold shops and luxury product displays.

For diamond showcase lighting projects, our product selection can be evaluated according to:

• Different spotlight beam angles for focused or wider illumination.

• Compact lighting designs for display cabinet integration.

• Color temperature and CRI options depending on the selected model.

• Recessed spotlight and linear cabinet lighting options.

• Technical support for model selection and cabinet integration.

• OEM and customized lighting requirements, subject to product feasibility.

For jewelry retailers, showcase manufacturers, lighting distributors and commercial project contractors, we can help evaluate suitable LED lighting products according to cabinet dimensions, jewelry types and project requirements.

7. Frequently Asked Questions

What is the best beam angle for diamond showcase lighting?

There is no single best beam angle for every diamond showcase. A 15° beam can create concentrated accent lighting, 30° can provide medium-width coverage, and 40° can illuminate a broader area. The final choice depends on cabinet dimensions, mounting distance and jewelry arrangement.

Does a narrow beam angle make diamonds sparkle more?

A narrow beam can create concentrated highlights on diamond facets, but sparkle also depends on the diamond's cut, light direction, source characteristics and viewing position. Correct fixture placement is just as important as beam angle.

How can I reduce glare in a diamond display cabinet?

Adjust the spotlight position and aiming direction, consider the angle of the glass panels, balance accent and ambient lighting, and test the cabinet from normal customer viewing positions.

Is CRI important for diamond showcase lighting?

CRI is one factor in evaluating color rendering, particularly when diamonds are displayed alongside colored gemstones and precious metals. However, CRI alone does not determine diamond sparkle. Beam distribution, light spectrum, brightness and fixture position should also be considered.

Can 15°, 30° and 40° spotlights be used in the same jewelry showcase?

They can be evaluated together when the showcase contains different display zones or product arrangements. However, the final combination should be determined through layout planning and sample testing to avoid uneven brightness and unwanted reflections.

What information is needed to select LED diamond showcase lights?

Useful information includes cabinet dimensions, mounting height, glass configuration, jewelry arrangement, desired color temperature, CRI requirements, preferred beam angles and estimated quantity. Cabinet drawings and photos can help with product selection.

Request a Diamond Showcase Lighting Solution

Planning a diamond jewelry showcase or manufacturing luxury display cabinets?

Contact Always Lighting to discuss your cabinet structure, lighting requirements and preferred beam angles.

We can help evaluate suitable LED showcase spotlights and cabinet lighting options for diamond displays, jewelry stores and commercial retail projects.

Always Lighting – LED Lighting Solutions for Jewelry Showcases and Retail Display Cabinets.
